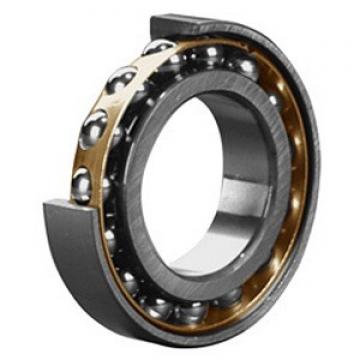

Angular Contact Ball Bearings 7314WN SU

Name: Angular Contact Ball Bearings 7314WN SU
Brand: TIMKEN
SKU: 7314WN SU
Rating: 4.9 (5 reviews)

Agicb industrial parts LLP

Agicb industrial parts LLPChina

Agicb industrial parts LLP2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

TIMKEN 7314WN SU bearing Size Chart (mm/inches)
d	85 mm
D	180 mm
B	60 mm
d2	107.9 mm
D1	156.7 mm
rs min	3 mm
Number of lubrication holes	3
b	11 mm
k	5 mm
e	0.32
Y1	2.09
Y2	3.11
Y0	2.04
Radial clearance class	CN
Mass	7.16 kg
Dynamic load, C	599 kN
Static load, C0	604 kN
Fatigue limit load, Cu	52.6 kN
Nref	3,200 rpm
Nlim	3,600 rpm
Min operating temperature, Tmin	-40 °C
Max operating temperature, Tmax	200 °C
Characteristic cage frequency, FTF	0.41 Hz
Characteristic rolling element frequency, BSF	5.1 Hz
Characteristic outer ring frequency, BPF0	6.11 Hz
Characteristic inner ring frequency, BPFI	8.89 Hz
da min	99 mm
Da max	166 mm
ra max	2.5 mm

Angular Contact Ball Bearings Part series 7314WN SU is a potential replacement for these common bearing part numbers:
