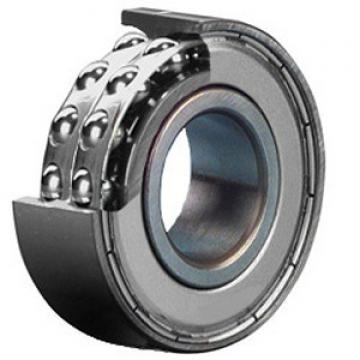

Angular Contact Ball Bearings 3311 A-Z/C3

Name: Angular Contact Ball Bearings 3311 A-Z/C3
Brand: SKF
SKU: 3311 A-Z/C3
Rating: 4.9 (5 reviews)

Agicb industrial parts LLP

Agicb industrial parts LLPChina

Agicb industrial parts LLP2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!

Interested In: Price Inspection Certificate Product Specifications Company Profile

SKF 3311 A-Z/C3 bearing Size Chart (mm/inches)
d	12 mm
D	32 mm
B	10 mm
rs min	0.6 mm
Radial clearance class	C3
Mass	0.04 kg
Dynamic load, C	6.1 kN
Static load, C0	2.75 kN
Fatigue limit load, Cu	0.13 kN
f0	12.7
Nlim (oil)	26,000 rpm
Nlim (grease)	22,000 rpm
Min operating temperature, Tmin	-60 °C
Characteristic cage frequency, FTF	0.37 Hz
Characteristic rolling element frequency, BSF	3.71 Hz
Characteristic outer ring frequency, BPF0	2.62 Hz
Characteristic inner ring frequency, BPFI	4.38 Hz
da min	16 mm
Da max	28 mm
ra max	0.6 mm

Angular Contact Ball Bearings Part series 3311 A-Z/C3 is a potential replacement for these common bearing part numbers:
