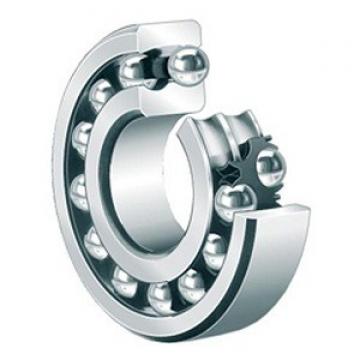

Self Aligning Ball Bearings 1216 P/6
category
Self Aligning Ball Bearings
CONSOLIDATED BEARING 1216 P/6 Bearing SPECIFICATIONS
- CONSOLIDATED BEARING
1216 P/6
- Self Aligning Ball Bearings
- 0.0
- CONSOLIDATED BEARING
- N/A
- 1.67
- 0644075109024
- B00152
- Shaft
-
Agicb industrial parts LLP2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Details
- Self Aligning Ball Bearings
- 0.0
- CONSOLIDATED BEARING
- N/A
- 1.67
- 0644075109024
- B00152
- Shaft
- Open
CONSOLIDATED BEARING 1216 P/6 Product Description
CONSOLIDATED BEARING 1216 P/6 bearing Size Chart (mm/inches) | |
|---|---|
| d | 120 mm |
| D | 260 mm |
| B | 86 mm |
| d2 | 156.9 mm |
| D1 | 224 mm |
| rs min | 3 mm |
| Number of lubrication holes | 3 |
| b | 18 mm |
| k | 8 mm |
| e | 0.32 |
| Y1 | 2.09 |
| Y2 | 3.11 |
| Y0 | 2.04 |
| Radial clearance class | C4 |
| Mass | 22.6 kg |
| Dynamic load, C | 1,170 kN |
| Static load, C0 | 1,280 kN |
| Fatigue limit load, Cu | 96.2 kN |
| Nref | 2,000 rpm |
| Nlim | 2,500 rpm |
| Min operating temperature, Tmin | -40 °C |
| Max operating temperature, Tmax | 200 °C |
| Characteristic cage frequency, FTF | 0.41 Hz |
| Characteristic rolling element frequency, BSF | 5.33 Hz |
| Characteristic outer ring frequency, BPF0 | 6.58 Hz |
| Characteristic inner ring frequency, BPFI | 9.42 Hz |
| da min | 134 mm |
| Da max | 246 mm |
| ra max | 2.5 mm |
CONSOLIDATED BEARING 1216 P/6 INTERCHANGE
Self Aligning Ball Bearings Part series 1216 P/6 is a potential replacement for these common bearing part numbers:
1216 P/6
1216 P/6
1216 P/6
1216 P/6
1216 P/6
1216 P/6
1216 P/6
1216 P/6
